Full Product Range

COPPER
PRODUCTS
CATALOGUE

Precision-engineered copper piping solutions by Jugal Tube Pvt. Ltd. — ASTM, EN & IS certified. Just-in-Time delivery to 5,000+ clients.

Copper Tubes Copper Coils Copper Fittings More Products
01
COPPER
TUBES

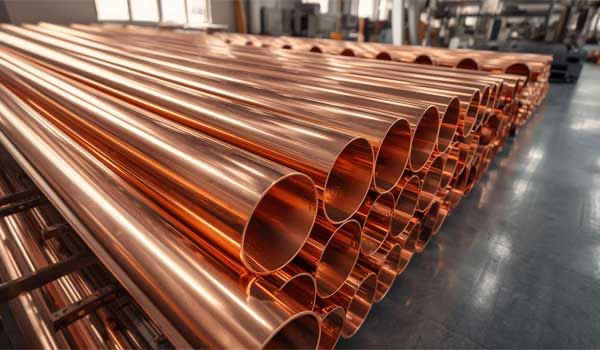

Soft and hard drawn copper tubes manufactured for heating, HVAC, plumbing, refrigeration, earthing, and industrial applications. Available in Types K, L, and M. Eco-friendly — each tube individually end-capped after cleaning. Lengths of 5.8m standard; 3m also available. Packed in plastic for optimal protection.

Specifications
OD tolerance: +0.0 / -0.08 mm
Tempers: Hard, Half-Hard, Quarter-Hard, Soft Annealed
Standards: ASTM B88, ASTM B280, EN 1057, IS 1545
Types K, L, M — different wall thickness grades
Interior residue: meets EN12735-1 & ASTM B280
Lengths: 5.8m standard, 3m available
Packaging: plastic-wrapped, end-capped
Custom lengths available on request
Applications
HVACACRPlumbing Earthing SystemsMarine Induction FurnacesAutomobile Solar PanelsGeneral Engineering
Request Inquiry WhatsApp
Size Chart PDF Types K, L, M PDF
02
COPPER
COILS

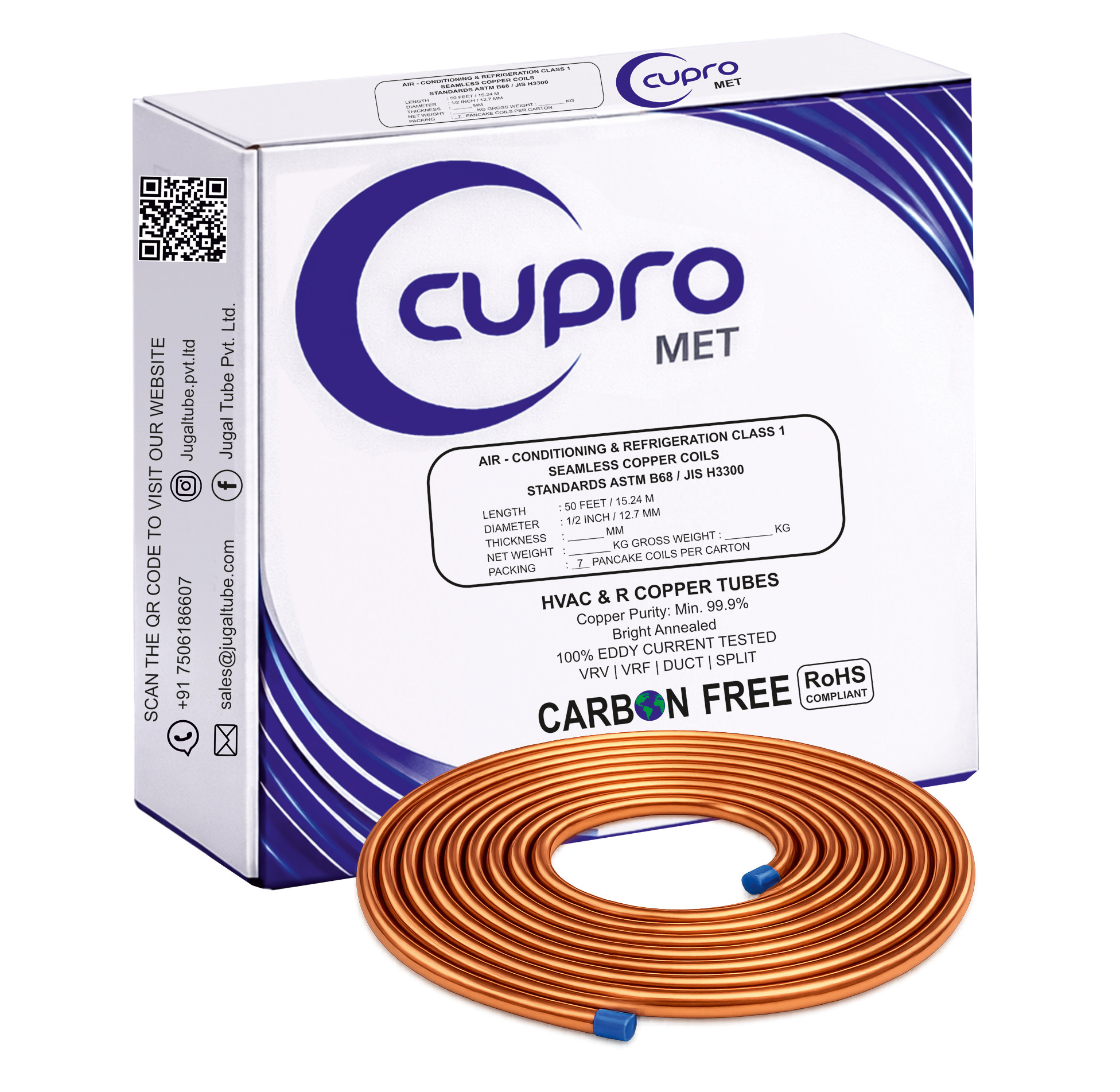

High-quality soft annealed Pancake Coils (PCC) and Level Wound Coils (LWC) for ACR, VRF/VRV systems, condensers, heat exchangers, and split AC units. Plain and plastic-coated variants. Each coil packed in wooden boxes or cardboard cartons with plastic covering. Color-coded for easy identification.

Specifications
Hardness: 45–60 HV5 (annealed at ~600°C)
OD tolerance: +0.0 / -0.08 mm
Interior residue: ≤ 0.038 g/m² (EN12735-1, ASTM B280)
Single & double-layer configurations
Plain and plastic-coated variants
Inner-grooved (IGT) variant available
Standards: ASTM B280, EN12735-1
Wooden box / carton packaging
Applications
ACR SystemsVRF / VRV Split ACHeat Exchangers CondensersEvaporators Oil & Gas LinesRefrigeration
Request Inquiry WhatsApp
LWC/PCC
03
COPPER
FITTINGS

Complete range of wrought copper fittings with no rough surfaces, tidy finish, and faster heat-up for installers. Elbows, tees, U-bends, reducers, couplings, and caps. Dimensions specified in internal diameter (I.D.). Non-standard bespoke fittings manufactured to customer design and specifications.

Types & Sizes
Sizes: 6.00 mm – 42.00 mm ID
90° & 45° Elbows (standard & small-radius)
U-Bends (standard & expanded — for condensers)
Tees, Cross-Tees (with female threads)
Reducers: 1/2"x3/8", 1/2"x1/4", 5/8"x3/8", and more
Couplings, Caps, Unions
Press & solder end types
Non-standard bespoke fittings on request
Applications
HVACRMedical Gas Pipelines Commercial PlumbingIndustrial Piping RefrigerationWater Service
Request Inquiry WhatsApp
Elbow 90°
Tee
U-Bend
Reducer
04

MEDICAL
COPPER
TUBE

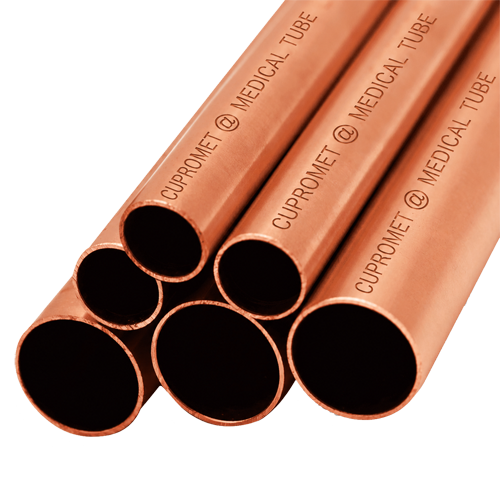

Cupromet Medical Copper Tube is manufactured to the strictest purity and cleanliness requirements for use in Medical Gas Pipeline Systems (MGPS). Made from 99.9% pure deoxidised phosphorus copper (Cu-DHP / CW024A), every tube is individually degreased, internally cleaned, nitrogen-purged, double end-capped and colour-coded — ready for direct installation in hospital oxygen, nitrous oxide, medical air, vacuum and CO₂ pipelines.

Technical Specifications
Standards: ASTM B819, EN 13348, ISO 13485:2016
Material: Cu-DHP (C12200 / CW024A) — 99.9% pure copper
Types: K (heavy wall) & L (medium wall)
Temper: R250 half-hard straight / soft annealed
Interior residue: ≤ 0.020 g/m² (medical grade)
Cleaning: Fully degreased, nitrogen-purged, certified clean
End condition: Double end-capped after cleaning
Colour-coded per ISO 32 / BS 3531 for gas identification
Batch traceable: MTR + cleanliness certificate per batch
Packaging: Sealed, labelled, export-ready
Medical Gases Served
O₂ Medical Oxygen — ICUs, OTs, emergency wards
N₂O Nitrous Oxide — anaesthesia & surgical gas
Air Medical Air — ventilators & respiratory care
VAC Vacuum & Suction — surgical suction lines
CO₂ Carbon Dioxide & Surgical Air
Installation Locations
ICU & Critical Care Operation Theatres Emergency Wards Bedhead Panels OT Pendants Dental Clinics Diagnostic Labs Pharma Plants
Cleanliness
≤ 0.020 g/m²
Interior residue — medical grade
Purity
99.9% Cu
Cu-DHP C12200 / CW024A
Certification
ISO 13485
Medical devices quality system
Traceability
Full MTR
Material Test Report per batch

Why medical-grade copper tube? Standard ACR copper cannot be used in hospital gas pipelines. Medical copper tube must meet ASTM B819 or EN 13348, be internally cleaned to ≤0.020 g/m², nitrogen-purged and double end-capped. These are mandatory requirements under HTM 02-01 (UK), NFPA 99 (US) and IS 3901 (India).

Request Medical Grade Quote View ISO 13485 Certificate
Medical copper tube for hospital gas pipeline systems — ASTM B819 EN 13348 certified oxygen nitrous oxide medical air
ASTM B819 · EN 13348
ISO 13485:2016 certified · Hospital grade
Also Available from Jugal Tube
EXTENDED
PRODUCT RANGE
LWC Copper Tube
Level Wound Copper Tubes for high-volume ACR and heat exchanger systems
Copper Heat Exchanger Tube
Specialist tubes for locomotives, heat exchangers, and industrial cooling
Copper Fin Tube
Enhanced surface copper fin tubes for superior heat transfer efficiency
Copper Rod
Solid copper rods for electrical, industrial, and general engineering applications
Copper Strip
High-purity copper strips for electrical and industrial manufacturing
Copper Bus Bar
Flat copper conductors for power distribution and switchgear applications
Brass Tubes & Rods
70/30, 63/37, Admiralty, Aluminium Brass — for sugar mills, evaporators, sanitary & furniture
Copper Nickel Tubes
CuNi 70/30 and 90/10 tubes for marine, offshore, and desalination applications

Also available: PVC Coated Copper Tube, Copper Nickel Fin Tube, Copper Nickel Round Bar, Copper Profile, Copper Section, Brass Rods, Brass Tube Fittings

CAN'T FIND
WHAT YOU NEED?

We manufacture custom sizes, grades, and non-standard configurations. Talk to our technical team.

Send a Custom Inquiry
