Manufacturing Excellence

WORLD-CLASS
VAPI
PLANT

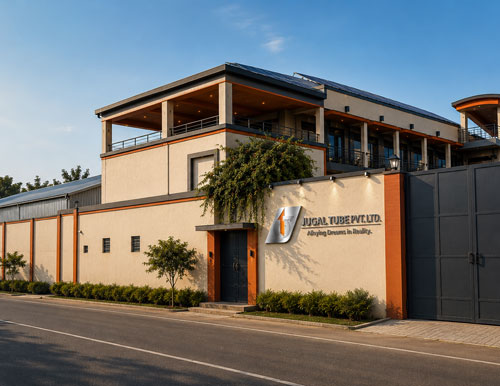

Jugal Tube's integrated manufacturing facility in GIDC, Vapi, Gujarat — equipped with state-of-the-art machinery for melting, casting, drawing, annealing and coil forming. Non-pollution working conditions throughout.

Manufacturing Unit
No. A, 2/56, GIDC Rd, GIDC, Killa-Pardi, Vapi – 396125, Gujarat, India
1987
Factory Established
Jugal Tube Pvt. Ltd.
2006
Major Expansion
Plant capacity doubled
2021
New Melting & Casting
Latest technology added
5,000+
Clients Supplied
Just-in-Time delivery
Production Process
FROM RAW COPPER
TO FINISHED PRODUCT
1
Raw Material
High-purity copper cathodes sourced from certified suppliers
2
Melting & Casting
Continuous casting unit produces billets with controlled composition
3
Hot Extrusion
Billets extruded into tube hollows at high temperature
4
Cold Drawing
Seamless tubes drawn to precise OD, wall thickness and tolerance
5
Annealing & QC
Thermal annealing, cleaning, end-capping & 100% inspection before dispatch
Plant Capabilities
BUILT FOR SCALE
& PRECISION
01
01 — MELTING
Melting Unit
Our 2021-commissioned melting unit uses electric induction furnaces to melt copper cathodes with precise composition control. The melting unit feeds directly into the continuous casting line for seamless upstream integration.
02
02 — CASTING
Continuous Casting
The continuous casting unit produces uniform copper billets with consistent grain structure and chemical composition. This technology significantly improves product consistency and reduces material waste in downstream operations.
03
03 — EXTRUSION

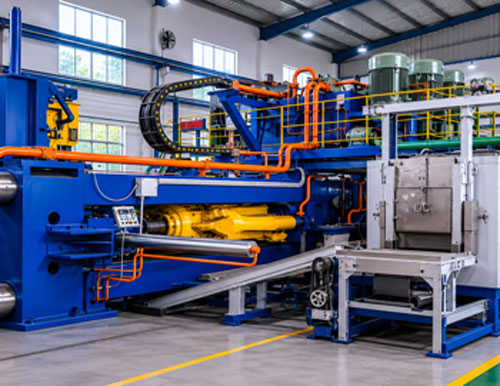

Hot Extrusion
Specialised hot extrusion presses convert copper billets into seamless tube hollows. This is the core process behind our seamless copper alloy tube capability — offering superior internal surface quality over welded alternatives.
04
04 — DRAWING
Cold Drawing & Coiling
Multi-pass cold drawing achieves precise OD and wall thickness to ±0.08mm tolerance. Our coiling lines produce Pancake Coils (PCC) and Level Wound Coils (LWC) with consistent layer winding and correct hardness of 45–60 HV5.
Quality Standards
Dimensional Inspection
Chemical Composition
Surface Inspection
Interior Cleanliness
End Capping
Hardness Testing
Pressure Testing
Residue <0.038g/m²
Packaging QC

ZERO-DEFECT
QUALITY CONTROL

Every Cupromet product undergoes rigorous multi-stage quality control. Interior residue is guaranteed ≤ 0.038 g/m² as required by EN12735-1 and ASTM B280. Each tube is individually end-capped after cleaning to preserve interior cleanliness standards during transit.

ASTM B88
Seamless Copper Water Tube — Standard specification
ASTM B280
Seamless Copper Tube — Air Conditioning & Refrigeration
EN 1057
Copper and copper alloys — Seamless, round copper tubes
EN12735-1
Copper tubes for ACR — Tubes for pipework
IS 1545
Indian Standard for Copper Tubes
Enquire About Capacity

SCHEDULE A
PLANT VISIT

See our manufacturing capabilities first-hand. Contact us to arrange a facility tour in Vapi, Gujarat.

Get in Touch
